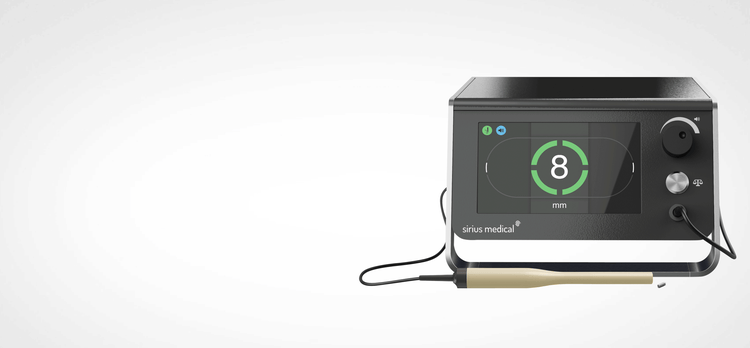

Pintuition® System

Designed to provide Surgical Marker Navigation in an easy-to-use and intuitive system

Request Information

Product Support

Simple. Reliable. Precise.

Moving from Localization to Surgical Marker Navigation

Style
Header-colored-secondary
spacer
50,before

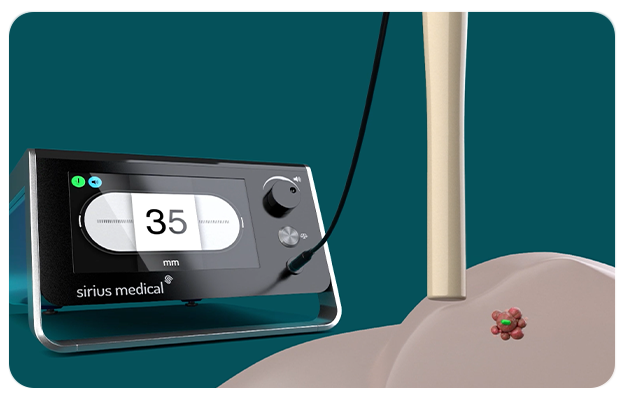

Intuitive Navigational Guidance while using the Pintuition system

Intuitive Navigational Guidance

GPSDetect® software provides real-time directional guidance using audio and visual feedback.

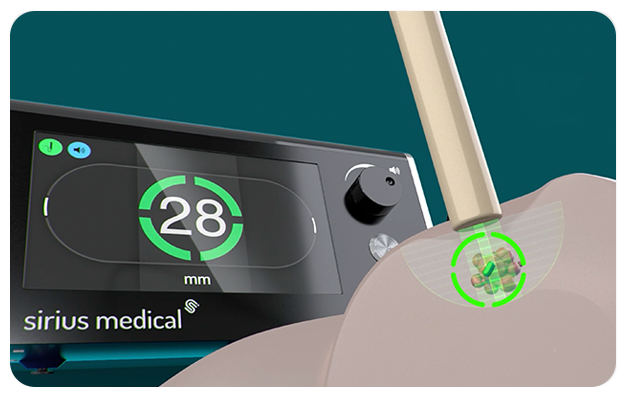

Pintuition TargetLOC

TargetLOC® Alignment

Unique TargetLOC® feature shows when the probe is aligned above the marker.

Pintution millimeter distance detection

Precise Millimeter Detection

The probes feature technology that allows for precise directional and distance measurement.

Pintution Marker

Robust Marker

The robust surgical Pintuition® Marker is designed to be detected by multiple sensors within the probe.

Style
Header-colored, text-medium
spacer
0,before

Two Pintuition® Probe Options Provide Pinpoint Detection of the Marker

The Pintuition® Slim Probe (12mm) and the Pintuition® Probe (18mm):

  • Leverage GPSDetect® and TargetLOC® software to maximize ease of use
  • Provide 50mm of directional detection range
  • Offer precision, durability and reliability
  • Have been validated for sterilization

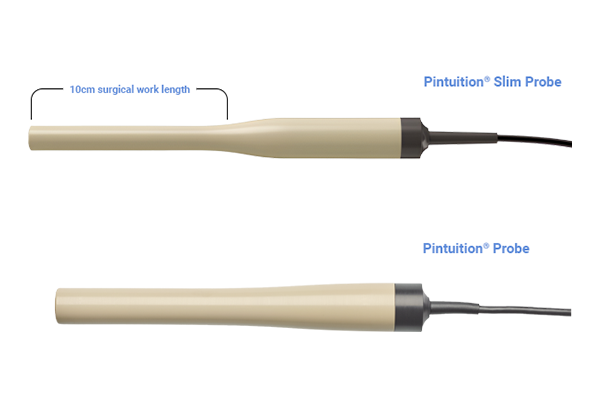

Pintuition Slim Probe and Pintuition Probe

The Pintuition® Slim Probe:

  • Boasts a 55% reduced tip surface area1 and 10cm surgical work length
  • Facilitates access through smaller incisions
  • Allows for maximum flexibility for surgical oncoplastic techniques

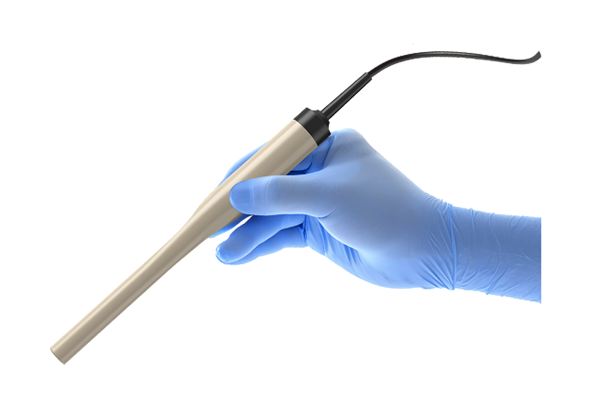

Pintuition Slim Probe in gloved hand
Style
Accent primary solid background, inverted text, text-medium
spacer
60,after,before

The Power of the Pintuition® Marker

  • High-grade, nickel-free titanium marker encapsulation ensures biocompatibility and durability
  • Easily visible under ultrasound or x-ray imaging
  • Permanent magnetic field allows for reliable detection from any direction, even in fluids
  • Non-radioactive marker eliminates nuclear medicine involvement and removes the need for radiation safety handling procedures
  • Long-term implant status and soft tissue indication
  • GPSDetect® software designed to make bracketing cases easy
  • 14G needle size with 7cm and 12cm length options, featuring an ultrasound-enhanced tip

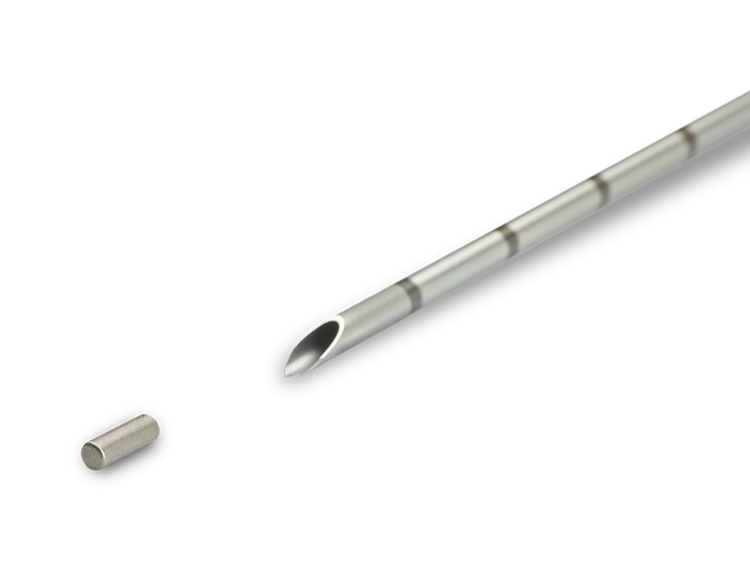

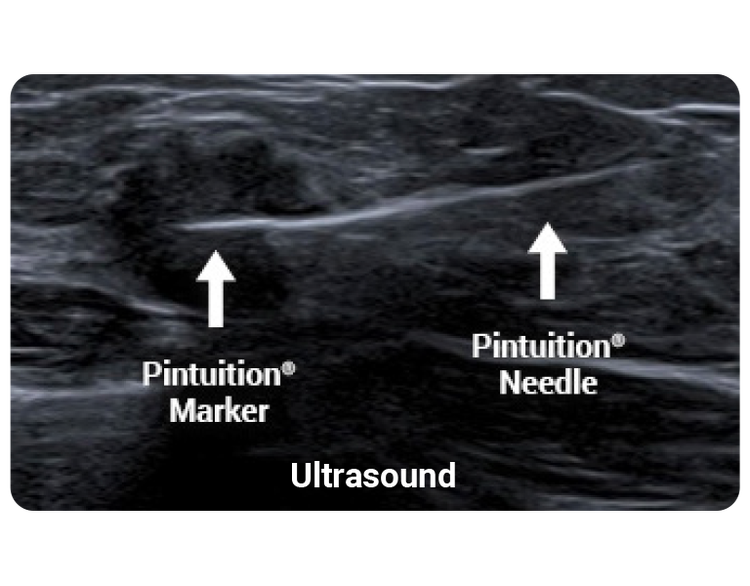

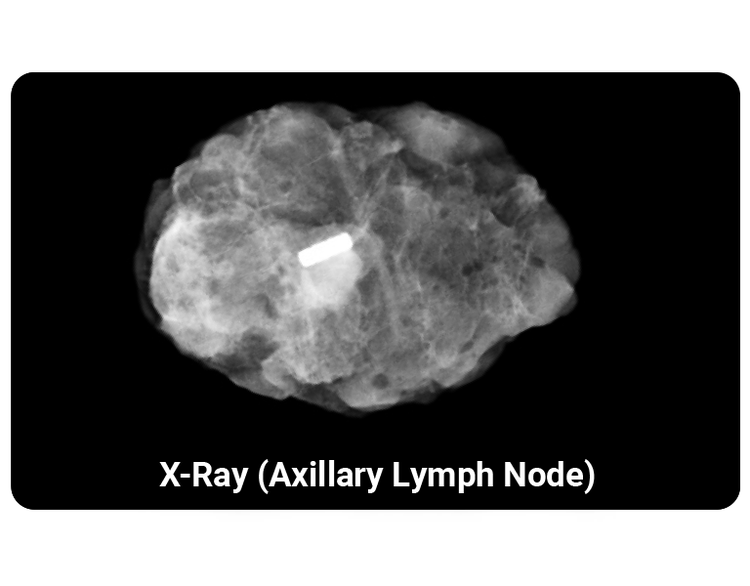

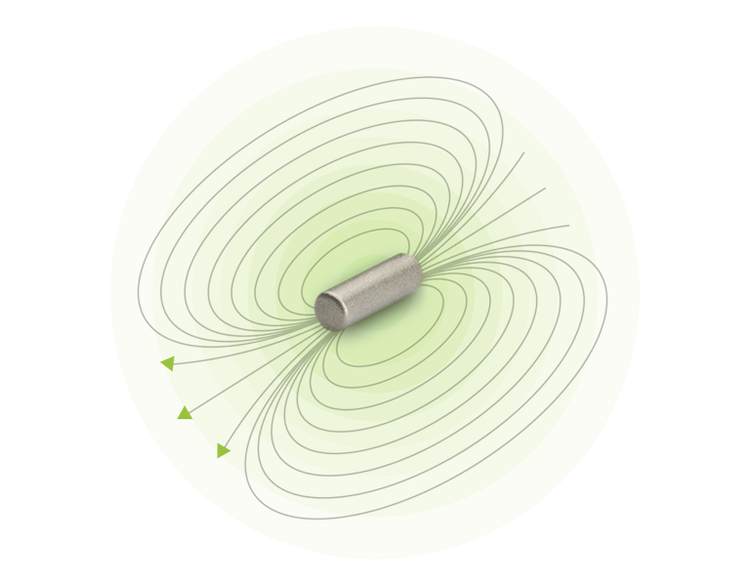

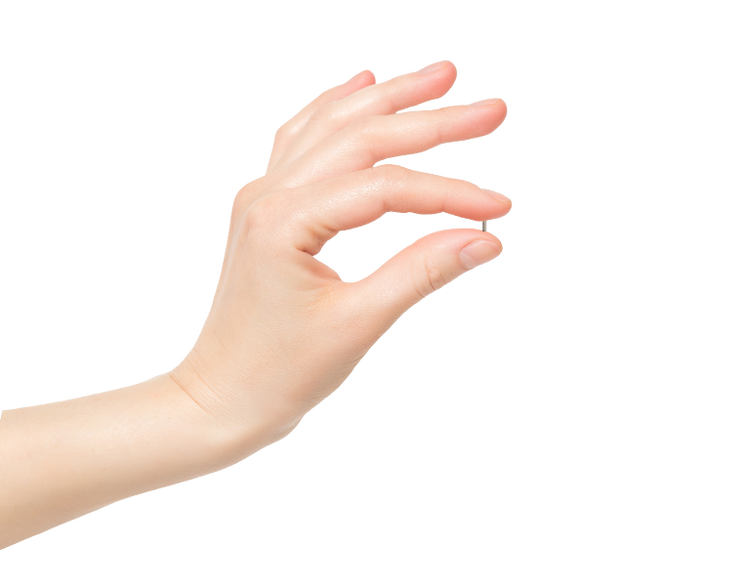

Pintuition marker and applicator tip Pintuition marker illustrating magnetic field for detection hand holding Pintuition marker between thumb and index finger Pintuition marker and needle are highly visible under ultrasound Pintuition marker is easily visible on x-ray Pintuition marker is easily visible on mammography
spacer
60,before, after

Interested in Learning More?

Contact us to learn how the Pintuition® System can help benefit your practice.

2364
Style
Align-left, accent-quinary-solid-background, text-medium
Spacer
0

Additional Resources

documents icon

Product Documents

technical support icon

Technical Support

schedule a demo icon

Schedule a Demo

Style
Header-colored

Frequently Asked Questions

What is the material and size of the Pintuition® Marker?
The Pintuition® Marker is a magnet encased in a medical grade biocompatible titanium material, designed for long-term implantation. The 1.65mm x 5.20mm marker is solid and robust, and cannot break.
Are there multiple probe options?
Yes, there are two options available, an 18mm Pintuition® Probe and an 12mm Pintuition® Slim Probe. The Pintuition® Slim Probe boasts a 55% reduced tip surface area1 and 10cm surgical work length.
Are the Pintuition® Slim Probe and the Pintuition® Probe reusable?
Please refer to the IFU for specific cleaning, disinfecting and sterilizing instructions. The probes can be cleaned and disinfected using any legally marketed medical device grade agent suitable for plastics, for example CaviWipes™ HP or Super Sani-Cloth®.
What is the distance and depth detection of the Pintuition® System?
When the probe is 35-50mm away from the marker, the Pintuition® System will provide distance information. When the probe is 0-35mm away from the marker, both distance and direction information will be displayed.
How does GPSDetect® software work?
GPSDetect® software provides real-time directional and distance feedback using audio and visual guidance to locate the marker easily and accurately.
What is TargetLOC® technology?
Both the Pintuition® Probe and the Pintuition® Slim Probe feature technology that allows for precise navigational guidance towards the target. The unique TargetLOC® feature shows you when the probe is aligned above the marker.
Style
spacer
0,after

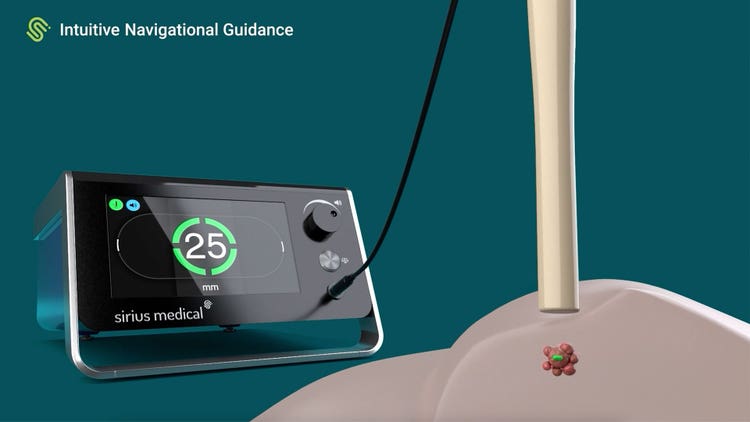

See the Pintuition® System in Action

https://youtu.be/8n8GSk4QLVQ
Watch the Pintuition System Video
spacer
0, after
style
Header-colored-secondary

Mammotome Markers

Mammotome® Markers

Offers clinicians the most comprehensive portfolio available, providing a customized solution for every breast biopsy need.

Learn More

Neoprobe System

Neoprobe® Gamma Detection System

Offering exceptional accuracy, effortless operation and advanced clinical capability.

Learn More

Mammotome Revolve EX

Mammotome Revolve™ EX System

Redefining minimally invasive lesion excision.

Learn More

style
header-colored, highlight
divider
spacer
0,after

Would you like more information about our surgical products?

Contact Us

Style
callout
spacer
50,after,before

1. As compared to the 18mm Pintuition® Probe
Modality photos courtesy of Dr. F. Dijkman, Elisabeth Hospital Tilburg

Mammotome is proud to be an authorized distributor of Sirius Pintuition® in the United States and Canada.
Pintuition® is a registered trademark of Sirius Medical

Products may not be approved or available in your region. Please check with your local Mammotome representative.
